ADS | AeroClave

ADS

Ambulance

Decontamination

System

Mounting Options

ADS mounted on a shelf inside ambulance.

ADS Shelf Mount

ADS mounted on the wall of an ambulance.

ADS Wall Mount

Max Protection

Decontaminate between EVERY patient transport

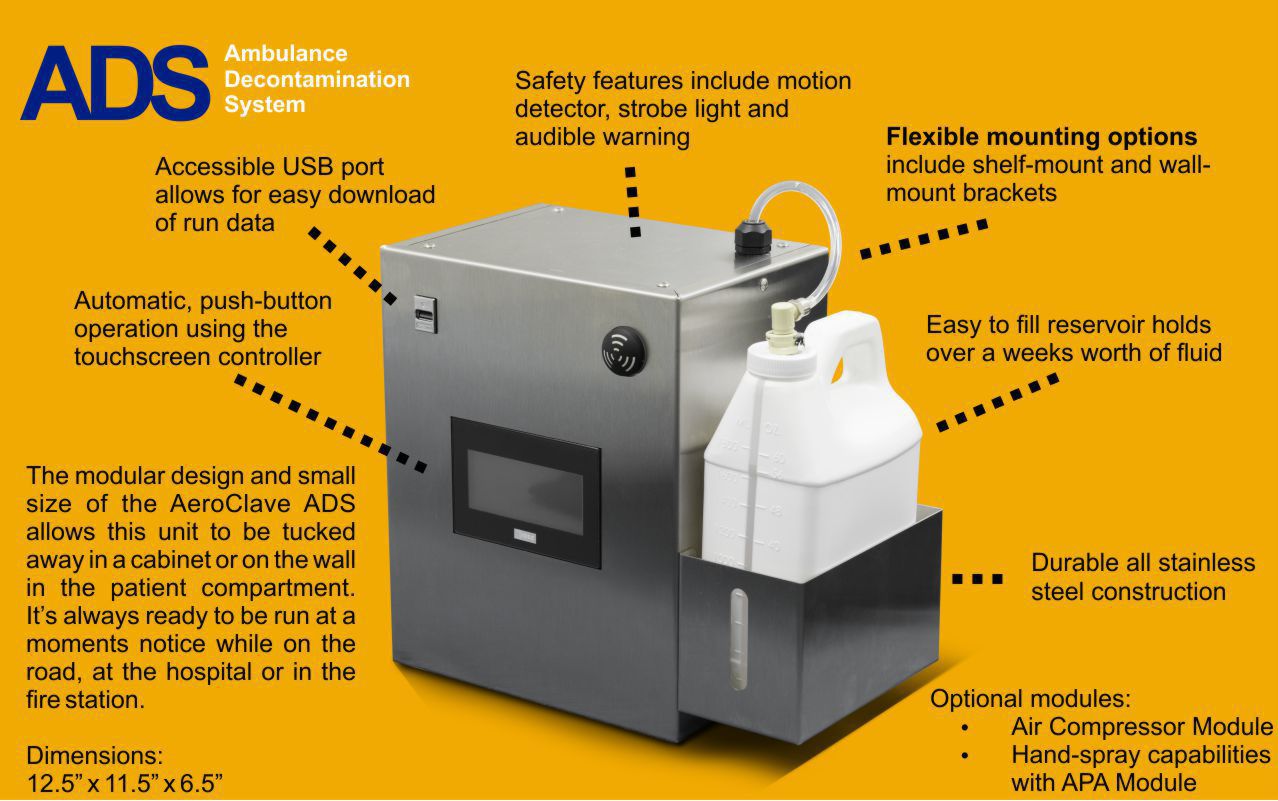

The AeroClave™ ADS is the first decontamination system directly integrated into your new or existing vehicle. The ADS utilizes an EPA-approved hospital disinfectant to give first responders the ability to decontaminate their vehicles and equipment after every patient transport.

The ADS provides the most convenient, hands-off solution to decontaminate your vehicle's patient compartment quickly, safely, and effectively. The AeroClave process provides consistent, reliable delivery of the perfect amount of disinfectant, decontaminating to OSHA and NFPA specifications every time in a matter of minutes....for a little over $1/day.

Fast turnaround and hands-free technology allows you to redeploy staff to highest and best use

Reduces your staff’s exposure to dangerous pathogens

Decontaminate even hard-to-reach surfaces

Consistent and reliable delivery of disinfectant, not achievable through manual cleaning methods

Environmentally friendly process

Low cost of operation and ownership

Safe for sensitive equipment

Decontaminate between transports for maximum protection

Proven to Save

Using the ADS proactively actually saves your department money! Ask us to show you how today!

Evaluation Kit >

Savings Calculator >

Highlighted Benefits

Operate ADS in-station or on the road between transports.

Max Flexibility

Operate in-station or on the road between transports.

Fast ambulance turn-around time under 20 minutes.

Fast Process

Improves asset turn-around time to get your vehicles and equipment back in service faster.

Lower Cost

Low cost of operation and ownership while providing faster decontamination process requiring less labor.

Safety

Safe for your staff, sensitive electronic equipment and the environment.

Be Prepared. Decon ALWAYS On-board.

You can mount the ADS inside almost any vehicle. Ask us about the possibilities.

ADS can be installed in type I and III ambulance.

ADS can be installed in command vehicle.

ADS can be installed in type II ambulance.

These are some of the manufacturers that have installed AeroClave.

No-Touch disinfection for all your vehicles

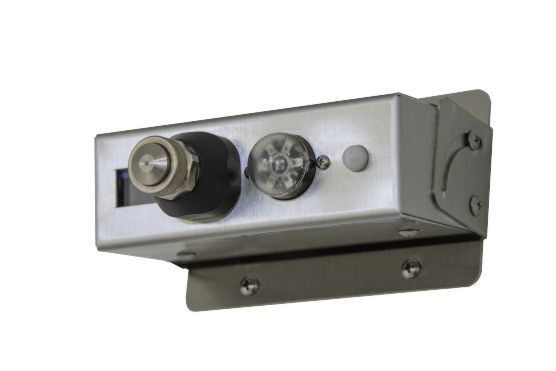

Nozzle Assembly

The nozzle assembly is installed inside the patient compartment to deliver an even blanket of disinfectant to every surface. The mounting bracket pivots to allow for easy positioning on the ceiling, wall or on top of the main module. The standard locations for the nozzle are either over the back doors or on the bulkhead between the patient compartment and the driver’s cab.

Dimensions:
5.5” x 2” x 4.7”

Optional. AeroClave Portable Applicator.

The AeroClave Portable Applicator, or APA, is used for manual hand application of disinfectant on high contact areas to spot treat backboards, stretchers and the exterior of the ambulance.

The APA Module comes with an ADP port to be mounted in an exterior cabinet and the standard 25-foot APA.

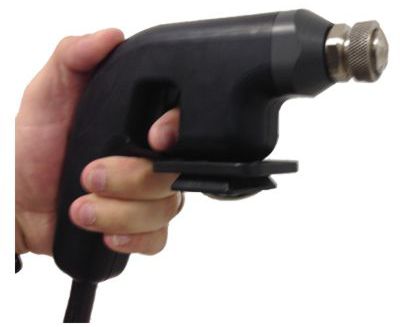

APA used for manual hand application of disinfectant on high contact areas to spot treat backboards, stretchers and the exterior of the ambulance.

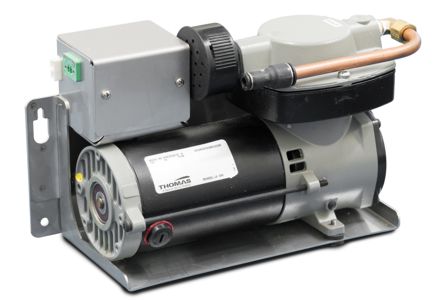

Optional. Air Compressor Module.

The Air Compressor Module is designed to be mounted anywhere in the ambulance. The kit contains all the tubing and control cable needed to hide the assembly in an exterior cabinet.

Destroys Pathogens

AeroClave's family of products represent the latest in decontamination technology. All our products use the proprietary AeroClave Process, utilizing an EPA-approved hospital disinfectant, to decontaminate rooms, vehicles, and equipment as an adjunct to gross decontamination.

Proven effective against MRSA, HIV-1, Hepatitis B, Hepatitis C, Ebola, MERS, CRE, E. coli, Norovirus, H1N1, Legionella pneumophilia, Salmonella, Listeria, mold, mildew and more.

 YES, it’s effective against EBOLA and MERS

Learn about the AeroClave process

DOWNLOAD PROCESS GUIDE >>

ADS Specifications

Download ADS Spec Sheet >>

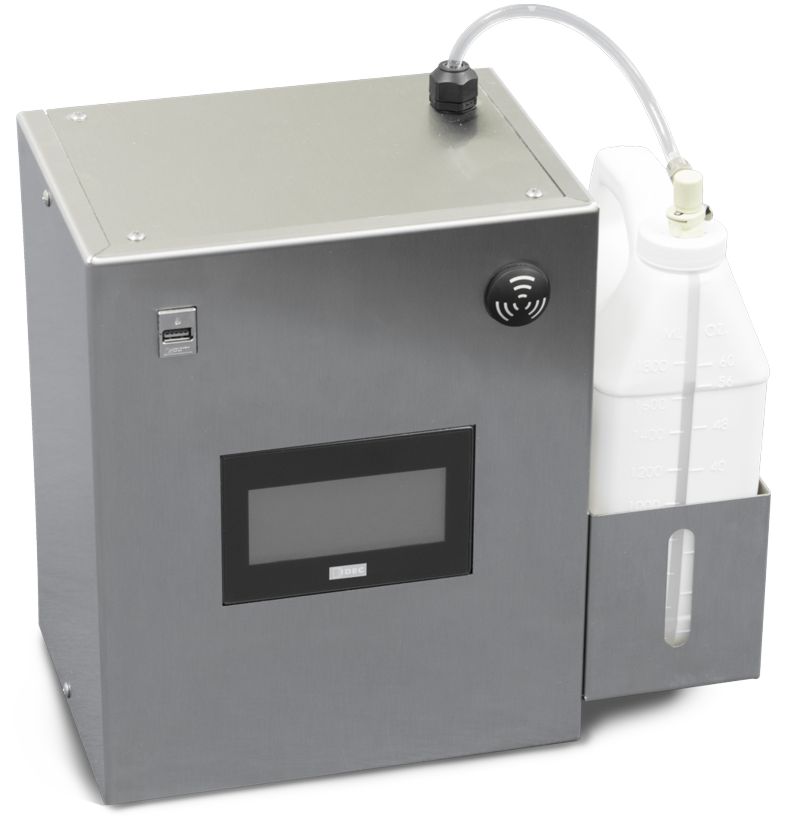

Main Module - p/n ADS-10000

* Case dimensions: (H)11.5 in x (W)12.5 in x (D)6.5 in

* Exterior: Stainless steel construction

* Weight: 15 lbs.

* Power supply: 12 VDC, 4 amps

* Mounting brackets: Both wall-mount and shelf-mount

* Remote control range: Maximum 100 ft

* Reservoir: 2000 ml with valve

* Air requirement: Minimum 1 cfm @ 30 psi

* Operating temp: 35°F to 80°F at between 45% to 75% relative humidity

*Maximum treatment area: 700 cubic ft

Nozzle Assembly:

* Case dimensions: (H)2.0 in x (W)5.5 in x (D)4.7 in

* Nozzle: Brass or acrylic

* Safety components: Motion detector, strobe light and air flow sensor

Optional Modules

Air Compressor Module - p/n ADS-20000

* Unit dimensions: (H)6.75 in x (W)10.5 in x (D)4.5 in

* Weight: 12 lbs.

* Power supply: 12 VDC, 13 amps

* Tubing and control wire included

* Compressor:

* Vacuum flow rate: 2.0 cfm | 55.8 l/min

* Vacuum continuous: 24.3 in.Hg | -823.7 mbar

APA Module - p/n ADS-30000

* Port bracket dimensions: (H)5.75 in x (W)3.75 in x (D)2.5 in

* Tubing and control wire included

* Includes standard APA: Spray gun with 25’ hose

Warranty and Training

* 12 month parts and labor warranty

* Operator training by AeroClave-certified staff

* Operator and service manuals

AeroClave offers extended warranty on the ADS.

Ask about our extended warranty program
