tPADS

  • Dual Decontamination Technologies
  • Multiple Configurations Available
  • Fully Transportable

transPortable Asset Decontamination System

tPADS


The AeroClave™ transPortable Asset Decontamination System (tPADS) is an environmentally friendly, computer controlled chamber that utilizes dual decontamination technologies. The tPADS allows assets of many types and sizes to be treated quickly, safely, and effectively in a matter of minutes.


Configuration options include fold-down shelves, fold-away chairs and tables, stretcher supports, various gear hangers and more.


The tPADS is designed to use both our proprietary aerosolized chemical technology and biothermal decontamination using AeroClave's ADUs.

Major Benefits

* Dual Decontamination Technologies

* Fully Transportable

* Rapid Cycle Time

* Total Spectrum Kill:  Viruses to Anthrax

* Low Cost of Operation

* Environmentally Friendly

* Safe for Sensitive Equipment

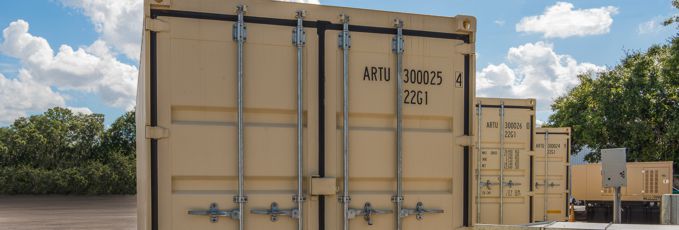

Rugged Design​​​​​​​

The standard tPADS chamber is contained in a 20' ISO shipping container, allowing it to be easily transported via aircraft, rail, ship, or truck, but can be custom designed to be integrated into any type of enclosure or structure.

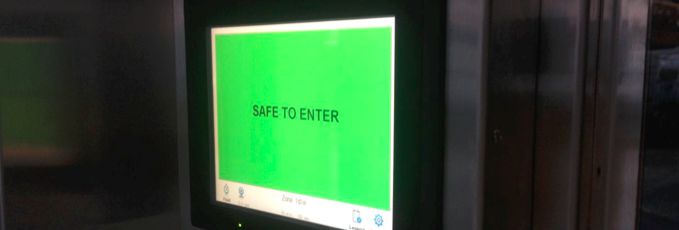

Computer Controlled

The tPADS system is controlled by an easy-to-use computer controller and requires minimal training. The push of a single button controls the entire process from start to finish.

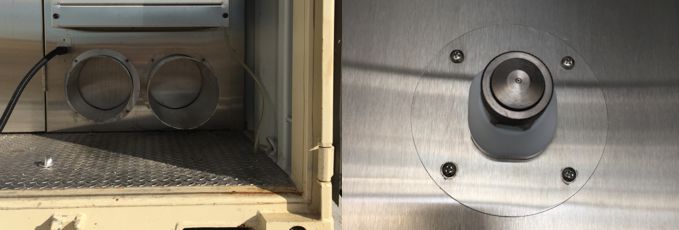

Dual Decon Technologies

The tPADS is designed to use both our proprietary aerosolized chemical technology and biothermal decontamination using AeroClave's ADUs.

Configuration Options

The tPADS chamber is flexible enough to be configured to decontaminate virtually any asset.

Fold-Down Shelves

Ramps

Gear Hangers

Stretcher Supports

tPADS Specifications

Dual Decontamination Technologies

* Proprietary AeroClave™ aerosolization technology

* AeroClave biothermal technology™


Configuration

* Total Weight: 9,000 lbs.

* Exterior dimensions: 20' L x 8' W x 8' H

* Interior dimensions: 16' 8" L x 7' 3" W x 7' 7" H

* Total decontamination surface area of 256 square feet

Configuration Options

* Fold-down shelves

* Fold-away chairs and tables

* Stretcher supports

* Gear hangers

* Loading Ramps

Controls

* Complete computer hardware with an integrated touchscreen controller

* Intuitive software monitor and control system

* Automated control of all decontamination functions including pre-conditioning, injection, and recovery phases


Power

* 240 VAC single or three phase/ 480 VAC three phase

Climate Control

* 115 VAC, cooling: 6.7 amps, heating: 11.2 amps

* Cooling capacity: 7600 (Btu/hr.)

* Heating capacity: 4000 (Btu/hr.)

* 175 CFM purge fan

Warranty and Training

* 12 month parts and labor warranty

* Operator training by AeroClave certified staff
